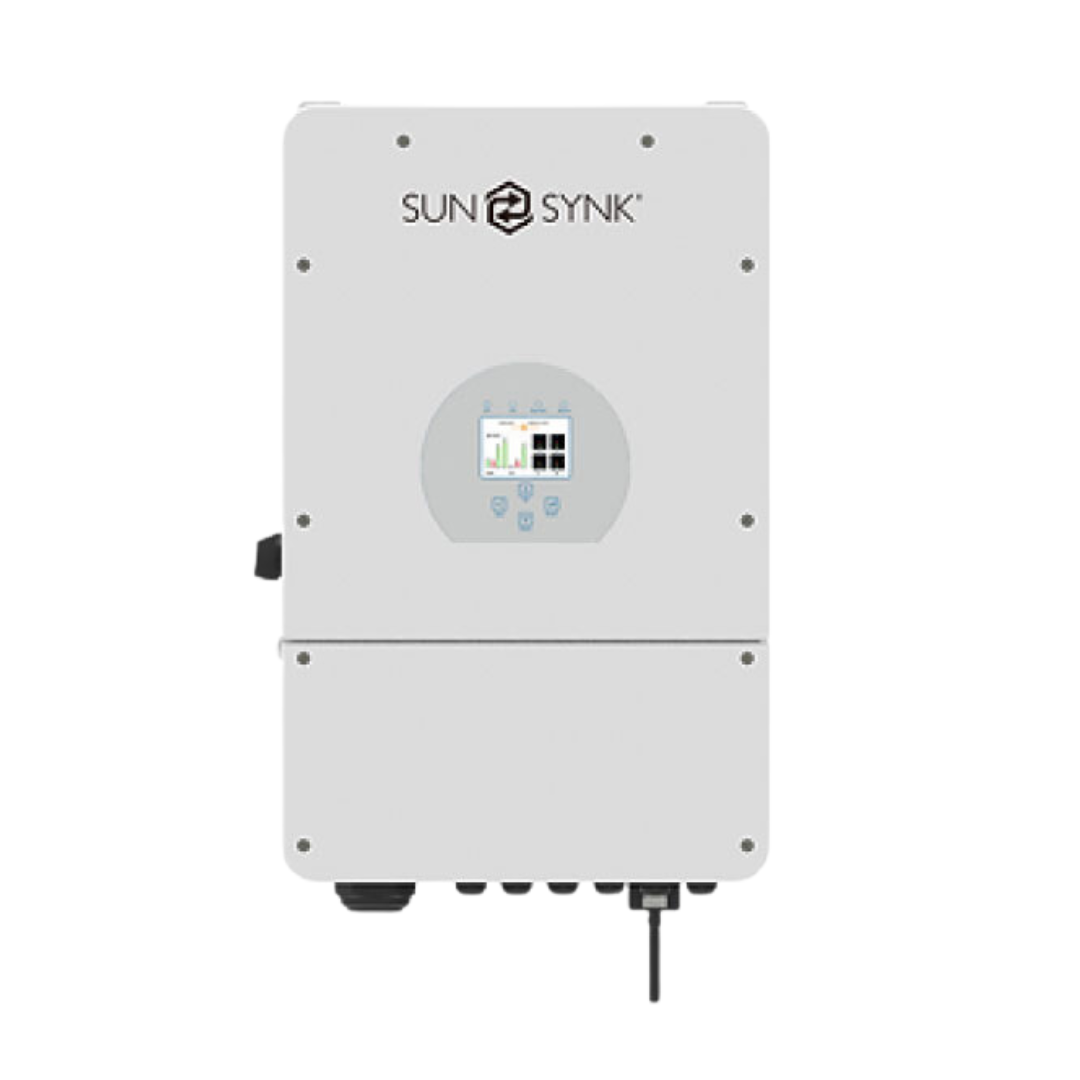

SUNSYNK 16kW Hybrid Inverter 1 Phase

Description SUNSYNK 16kW Hybrid Inverter (1 Phase) – SUNSYNK MAX Model SUNSYNK MAX The Most Powerful Low-voltage Inverter In The World. Achieves a Maximum Output Power of 16kW and battery Charge Current of 300A Manages power flow from multiple sources such as Solar, Main Power (Grid) and generators, then effectively storing & releasing power as & when utilities require. Colourful Touch LCD Storing energy from diesel generator supported. Wi-Fi & GSM monitoring supported. Equipped with a Visual power flow screen. Parallel/multi-invert function grid-tied & off-grid. Grid Type: Single-Phase. Protection Degree: IP65 Noise Level: <30dB Maximum Charge & Discharge Current: 300A Battery Charging Strategy: Self-Adaptation to BMS Maximum DC Input Power: 18000W MPPT Range: 250-450V Start-up Voltage: 150V Maximum On-Grid AC Power: 16000W Maximum Off-Grid AC Power: 13000W AC Output Rated Current: 65A Maximum AC Current: 70A Frequency Range: 45-55Hz Voltage Range: 211-264V Maximum Efficiency: 97.60% MPPT Efficiency: 99.90% Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately) Battery Voltage Range: 43-60V Communication with BMS: CAN/RS485 Fan Cooling Operation Temperature: -25°C to 55°C Installation Type: Wall Mounted. Weight: 34.5Kg Dimensions (W x H x D): 422 x 702 x 281 mm Refer To the Brochure For Detailed Product Specifications. Product might vary from depicted images. Graphics are for illustrative purposes only. 5 Year Limited Product Warranty. T & C’s Apply Free Delivery Nationwide – South Africa Recommended Solar Panel Configuration: Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT) First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT) Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT) Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT) Based on Seraphim, Raystech, JINKO, JA Sola Product label16KW Single Phase Sunsynk Max Hybrid Inverter   Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.
