Water Driven Type B Chemical Sprayer with Bottle

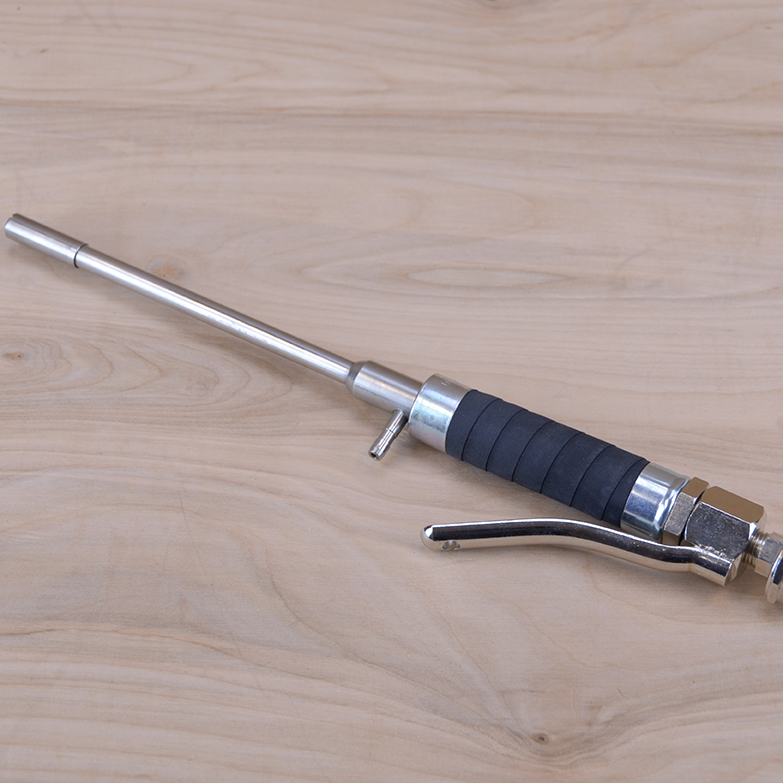

This Type B chemical sprayer with bottle assembly uses ordinary water pressure to deliver controlled chemical mixing without pumps or batteries. The 13″ sprayer is built with a stainless-steel flow path, nickel-plated brass valve, and a flexible three-ply neoprene sleeve rated from -40°F to 150°F with 360 psi burst pressure. It includes a quart bottle siphon that keeps chemicals separate from the water line and lets users choose either a small orifice at approximately 10 oz/min or a regular orifice at approximately 2 qt/min for dosing control. The page also notes a 1/4″ NPT female inlet, QRS adapter, and all stainless-wetted parts for food-grade sanitation in dairies, breweries, and other wash-down environments. Part Numbers 09G – Sprayer with bottle 09G-LV – Sprayer with bottle, low siphon rate (small orifice, approx. 10 oz/min)
